- 【Strong And Lightweight Carbon Fiber Construction】 The frame rails are precision laser cut from 3mm carbon fiber for high strength and light weight. This ensures the durability of the buggy while keeping the overall weight of the RC tracked vehicle at a minimum.
- 【Attractive Gloss Coating】 Aluminum alloy is precision machined and anodized in silver, purple, black and red, with colorful carbon fiber support tubes and race steel base plate side sills for lightweight and durability. All carbon fiber parts in the kit are gloss coated to enhance the visual appeal of the RC Track Vehicle. The glossy coating not only adds style, but also protects the carbon fiber and makes it stand out from other chassis kits.

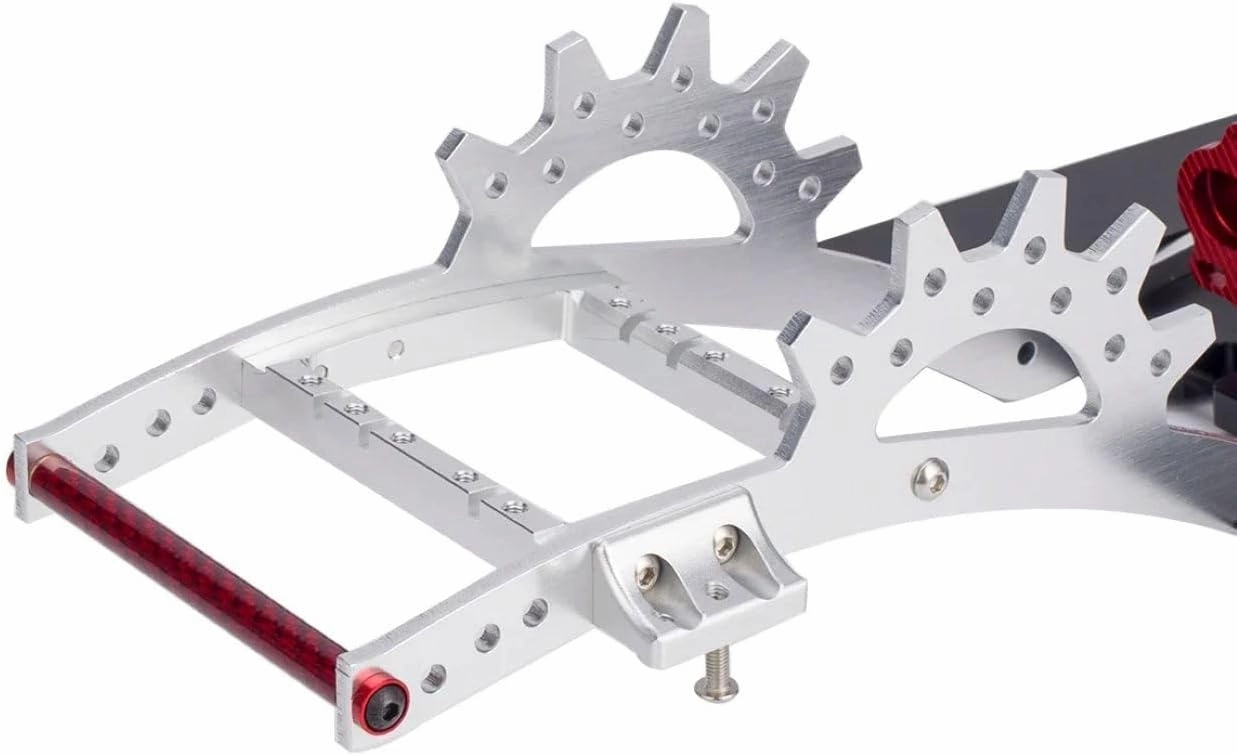

- 【Innovative Bumper Design】The bumper in the kit comes with built-in hooks and a new angled design. This design not only adds to the aesthetics but also ensures practical functionality when climbing. The wheels enhance the kit's versatility in various applications.

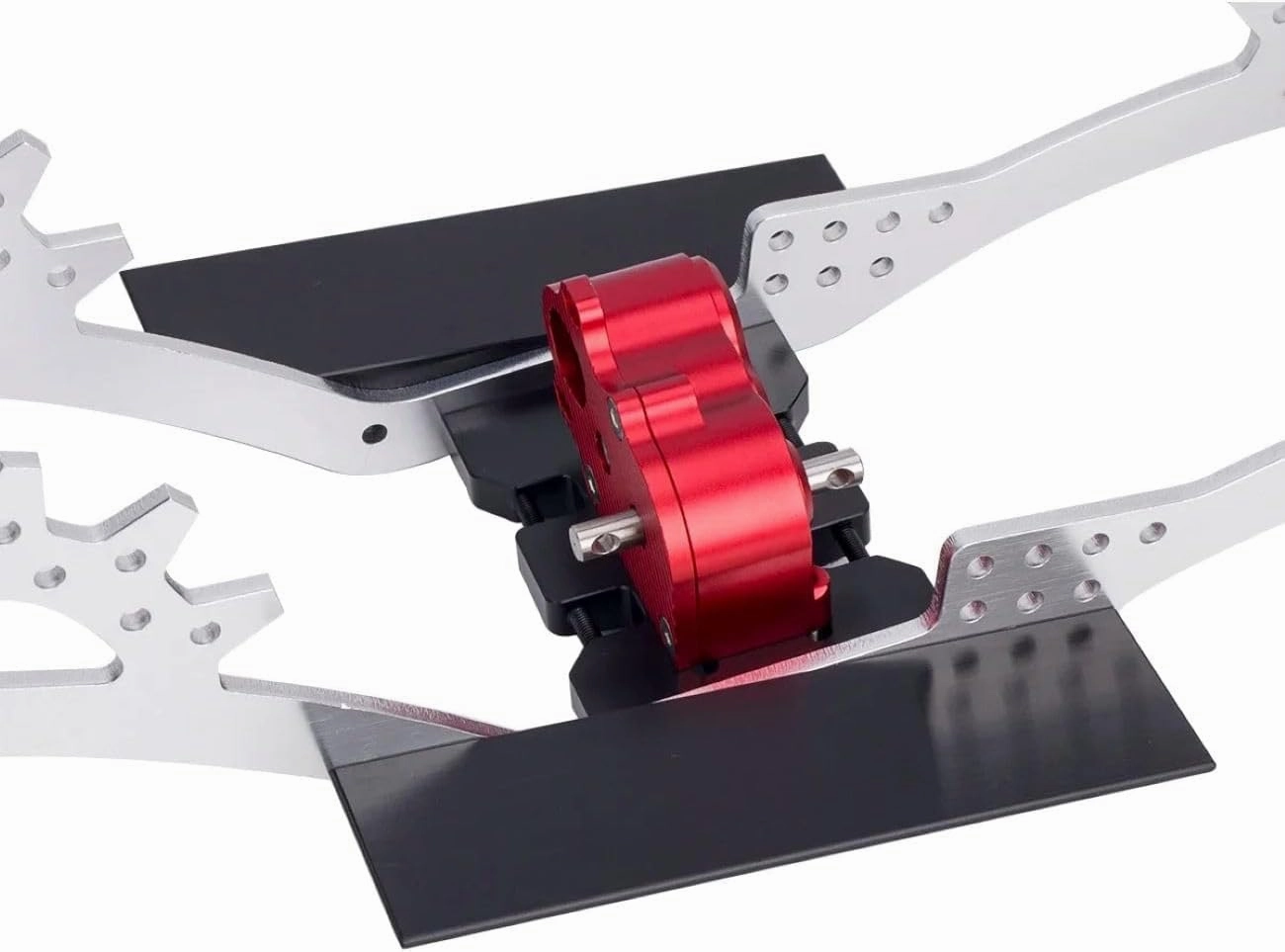

- 【Advanced Gearbox Design】 The kit features a new machined aluminum/carbon gearbox with a removable cover plate on the back that allows for easy pinion spacing adjustment for those who want to fine-tune track performance.
- 【Multiple Mounting Options】 Designed for compatibility with 1/10 RC track cars and Cheater Rigs, this chassis kit retains ideal LCG geometry, maximum versatility and adjustability, maximum belly clearance, multiple mounting holes in the crossmember and additional body support brackets provide ample adjustment possibilities for a variety of body configurations and mounting preferences.

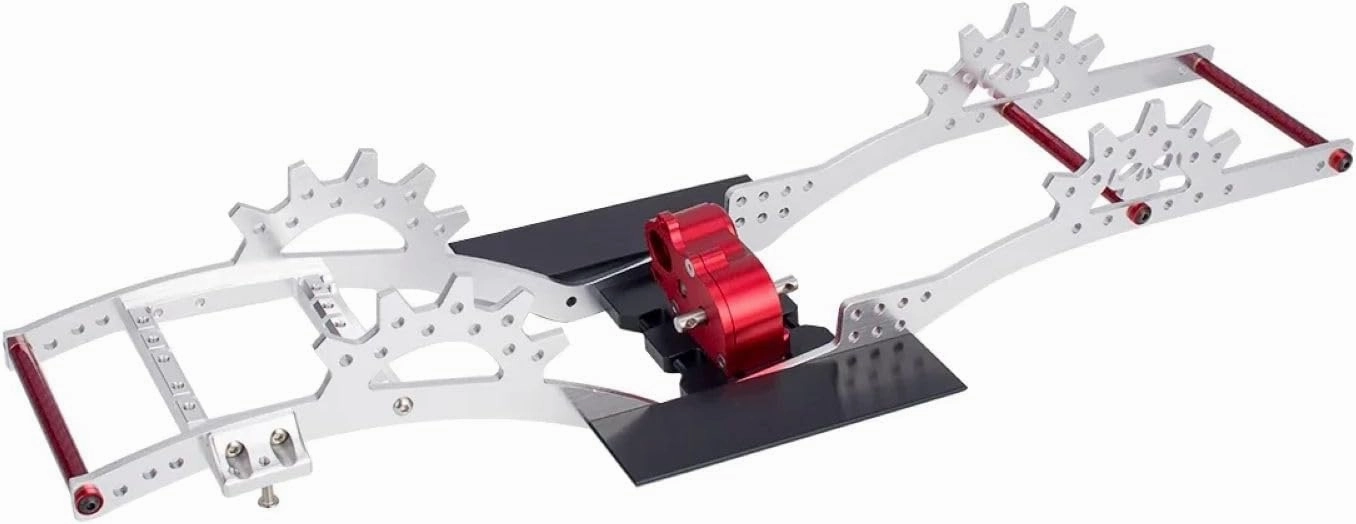

Aluminium LCG Chassis Kit Frame for 1/10 Rc Tracked Vehicle Capra SCX10 II VS4-10 Upgrade with Twin Servo Mounts/Gearboxes
Description:
Aluminum alloy precision machining, silver purple black red anodizing, paired with colored carbon fiber support pipes and Sai steel bottom plate side pedals, lightweight and durable
Includes basic chassis accessories(rails,3 carbon fiber support tubes,dual rudder seat, Panhard seat, LCG performance gearbox,Delrin bottom plate, Delrin side pedals)
Laser cutting from 3mm aluminum alloy plate
Silver/purple/black anodized
Retained the ideal LCG geometry
Maximum versatility and adjustability
Ultimate belly clearance
(Rough brushed may exist due to cutting and grinding burrs)
Specifications:
Category: Frame
Materials: aluminum alloy, stainless steel, Saigang
Wheelbase: 313mm (adjustable)
Total length: 413mm
Weight: 133g
Bottom plate, servo base, and carbon tube width: 67mm
Width after installing the electrical board: 133mm
Category: Uniform speed Gear
Material: aluminum alloy (shell), stainless steel (gear)
Motor teeth: 9T-32P
Gear ratio: 9:1
Compatible motor: 540,550/outer rotor (3.17mm shaft)
Output shaft: 5mm
Colors:purple, red,black
Weight: 54.2g (excluding screws)
Compatible base plate: SCX10 model (three hole)
Note:Loose shipment, buyer needs to assemble it themselves
